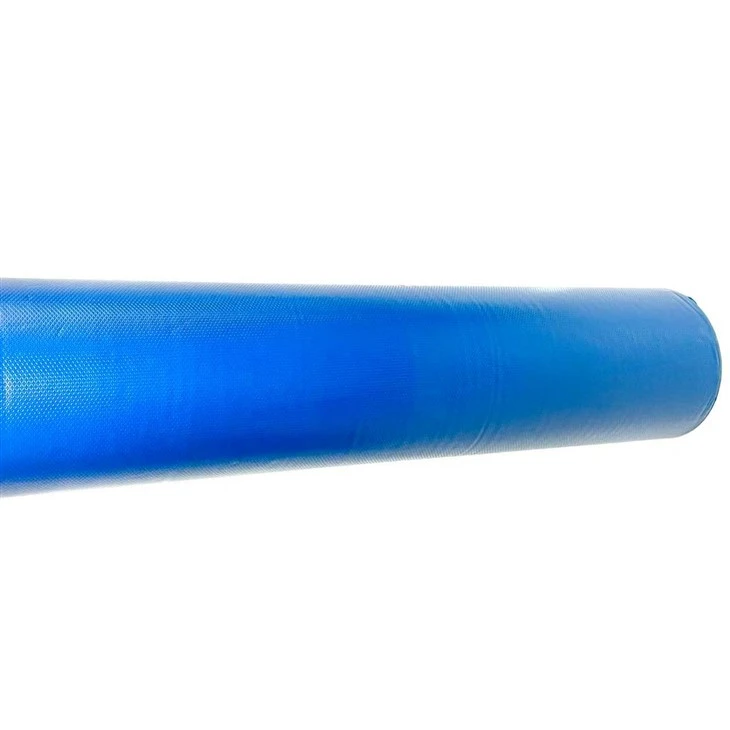

Blue embrossed PE film

Blue embrossed PE film, also known as polyethylene film, is a plastic film made from polyethylene granules through extrusion or blow molding. The main steps in producing PE film include raw material preparation, melting, forming, cooling, drawing, and winding.

Highly efficient demoulding performance

Based on the characteristics of non-polar molecular structure, only 0.5-1.2N/cm peeling force is required to achieve lossless demoulding after vulcanization. The micro-convex structure produced by the special mesh design (80-120 mesh) forms a physical isolation layer, which improves the demoulding efficiency by 40% compared with the traditional demoulding process, and no silicone oil pollutants will remain on the rubber surface.

PE Film Description

NO.	ITEM		UNIT	SPECIFICATION	RESULT
1	SURFACE QUALITY		\	There should be no defects on the surface such as bubble, perforation, water grain, stripe, bursting rib, bad plasticization, fish eye block, etc	There are no defects on the surface such as bubble, perforation, water grain, stripe, bursting rib, bad plasticization, fish eye block, etc
2	WIDTH		MM	250±5	250
3	THICKNESS BEFORE EMBOSSING		MM	0.12±0.012	0.113
4	TENSILE STRENGHT	WARP	MPA	≥10	24
4	TENSILE STRENGHT	WELF	MPA	≥10	21
5	NOMINAL STRAIN AT BREAK (%)	THICKNESS < 0.050	MM	≥130	\
5	NOMINAL STRAIN AT BREAK (%)	THICKNESS ≥ 0.050	MM	≥200	203
6	COLOUR		\	\	Transparent
7	FIGURE		\	\	Diamond figure
8	THICKNESS AFTER EMBOSSING		MM	\	0.201

Blue embrossed PE film Packing

PE film

PE film
