PET Plastic Sheet

Polyethylene terephthalate Sheet

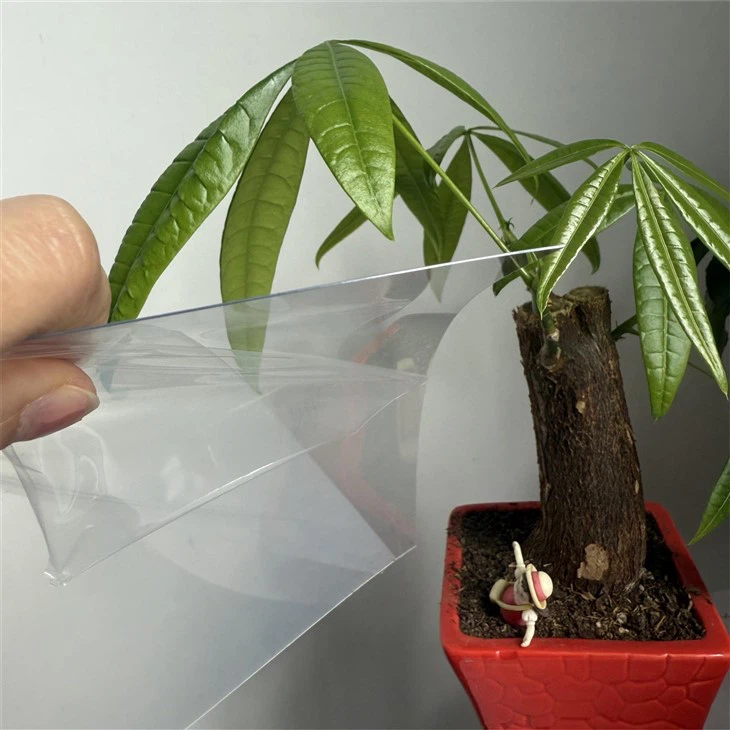

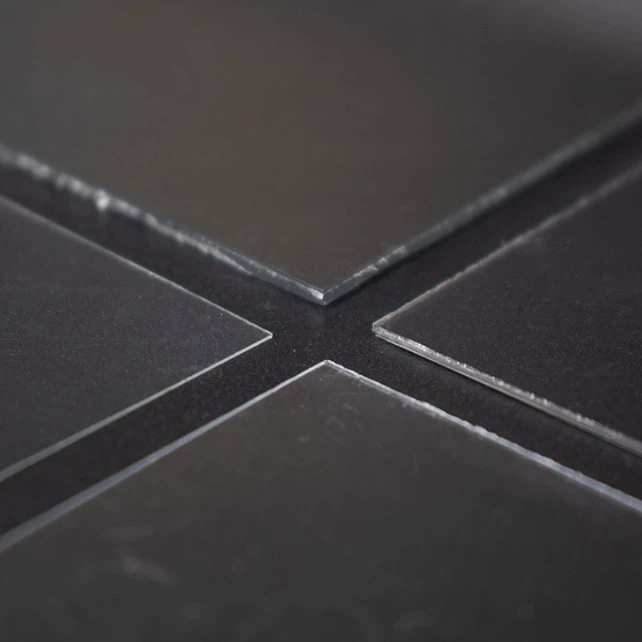

PET sheet

PET sheet panels are widely used in packaging of consumer goods, electrical accessories and medical products. In packaging applications, PET sheets are an excellent barrier against acids and strong oxidants.

Flexibility as well as high temperature and impact resistance are some of the important features of our PET sheets.

CRATUS PET Sheet Product Features:

1 Rigidity, high transparency and gloss

2 Stable performance, not affected by humidity

3 Good electrical conductivity

4 Superior impact resistance

5 High light transmittance

6 Superior processing performance

7 Waterproof, weather-resistant, corrosion-resistant

8 Environmentally friendly Tasteless, odorless, non-toxic; No pollution, easy to recycle

PET & PET(G) SHEETS

PETG & PET(G) SHEETS

Technology Characmaters

General properties	value	test	units
Density	1.38	ISO 1183	g/cm³
Water absorption	0.25	ISO 62	%
Flammability	HB / HB	UL 94	/
Mechanical properties
Yield stress	85	ASTM D638	MPa
Elongation @ failure	15	ASTM D638	%
Tensile modulus	3000	ASTM D638	MPa
Notched impact strength	2	DIN EN ISO 179	kJ/m2
Ball hardness	170	DIN EN ISO 2039-1	MPa
Rebound hardness	84	DIN EN ISO 868	Scale D
Thermal properties
Melting point	255	ISO 11357-3	°C
Thermal conductivity	0.28	DIN 52612-1	W / (M*K)
Heat capacity	1.1	DIN 52612	kJ / (kg*K)
Linear expansion coefficient	60	DIN 53752	10^-6K^-1
Use temperature, long-term use	-20 up to +115	Average	°C
Short-term use temperature (maximum)	180	Average	°C
Heat deformation temperature	80	ASTM D648	°C
Electrical properties
Dielectric constant	3.4	IEC 60250	/
Dielectric loss factor (50Hz)	0.001	IEC 60250	/
Volume resistivity	10 ¹⁸	IEC 60093	Ω*cm
Surface resistivity	10 ¹⁶	IEC 60093	Ω
Relative tracking index	600	IEC 60112
Dielectric strength	20	ASTM D149	kV/mm

Applications

PET sheet panels can be used in food and beverage packaging: medical devices, display racks, display boxes and packaging,3D printing and electronic product housings, panels, etc.

Application of PET materials:

1 Packaging of food and other items

2 Applied in the thermoforming industry, such as food trays, disposable lunch boxes, etc.

3 Applied in folding boxes

4 Membership cards and DIY cards in supermarkets and other industries, etc.

5 Applied in protective films/screen protection and cover board packaging, etc.

6 Printing .Promotional pattern printing

Equipment Introduction

01.

DE-MOISTURE DRYING MACHINE

02.

AUTOMATIC REWINDING CUTTING DEVICE

Payment

L/C, T/T, D/P, D/A

FAQ

Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide free samples, and you only need to pay for the freight - by international express (DHL, FedEx, UPS, TNT or Aramex, etc.).

Q: What's your payment terms?
A: Payment ≥US$1000, 30% T/T in advance, balance before shipment. We also accept L/C at sight.

Q: What is your standard packing?
A: Normal packing type: PE bag + kraft paper or PE wrapping film + protective corner + wooden pallet.
Normal packing size: 3'x6' or 4'x8' or as per customer's requirement.

Packaging method

Wooden crate,carton,Plastic packaging,Bubble wrap/cushioning material packaging,Wrapping film packaging,Tray packaging,corrugated container

Factory storage
